Harbor Facilities

• 1Oshio, Matogata, Fukudomari, Yagi, Shirahama
• 2Megahida, Mega
• 3Suka, Shikama, Nakashima, Irifune
• 4Kibi, Hirohata
• 5Aboshi, Aboshi offshore
• 6Hamada, Kariya

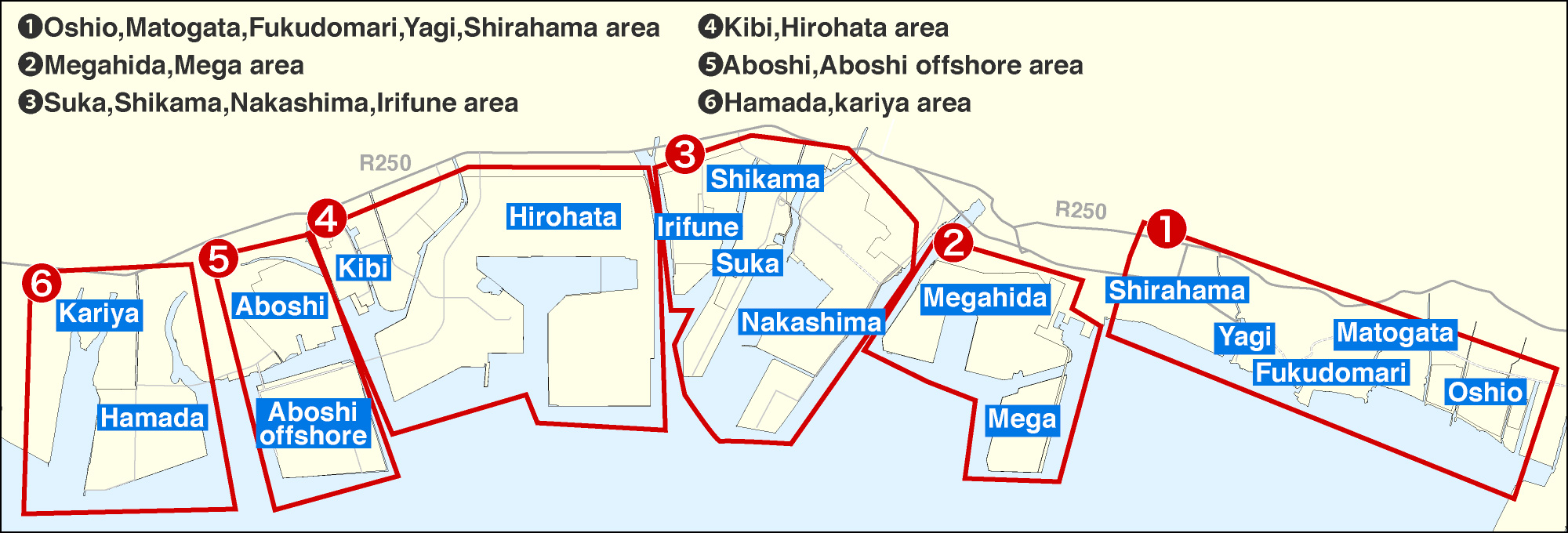

Entire View of the Port of Himeji

1Oshio, Matogata, Fukudomari, Yagi, Shirahama

Open Oshio, Matogata, Fukudomari, Yagi, Shirahama data (PDF)

Anchorage areas

Area name	Anchorage area [ha]	Breakdown by water depth [ha]
		Lower than -4.0m	Not lower than -4.0m but lower than -7.5m	Not lower than -7.5m but lower than -9.0m	-9.0m or higher
Oshio Anchorage Area	1.6	1.6	-	-	-
Fukudomari Anchorage Area	0.8	0.8	-	-	-

2Megahida, Mega

Open Megahida, Mega data (PDF)

Anchorage areas

Area name	Anchorage area [ha]	Breakdown by water depth [ha]
		Lower than -4.0m	Not lower than -4.0m but lower than -7.5m	Not lower than -7.5m but lower than -9.0m	-9.0m or higher
Eastern Industrial Area Ship Anchorage Area	142.3	-	-	20.3	122.0

3Suka, Shikama, Nakashima, Irifune

Open Suka, Shikama, Nakashima, Irifune data (PDF)

Channels

Channel name	Water depth [m]	Length [m]	Width [m]	Remarks
Shikama Channel	-12.0	1,600	250	Act on Port Regulations applied
Higashi Channel	-14.0	1,700	300	Act on Port Regulations applied

*The water depth is planned value. Check the actual water depth with charts, etc.

Mooring Facilities (Foreign Trade Public)

Area	Name	Water depth [m]	Length [m]	Target ship [D/W]	Berths
Nakashima	Nakashima No.1 to No.2 Berth	-7.5	260	5,000	2
	Nakashima No.3 to No.4 Berth	-12.0	480	30,000	2
Suka	Shikama No.4 to No.6 Berth	-10.0	510	12,000	3
	Shikama No.7 to No.9 Berth	-12.0	720	30,000	3
	Senba River No.7 to No.12 Berth	-7.5	780	5,000	6

Anchorage areas

Area name	Anchorage area [ha]	Breakdown by water depth [ha]
		Lower than -4.0m	Not lower than -4.0m but lower than -7.5m	Not lower than -7.5m but lower than -9.0m	-9.0m or higher
Shikama Area Inner Harbor Anchorage Area	27.8	-	-	27.8	-
Nakashima / Suka Area Ship Anchorage Area	153.9	-	-	4.2	149.7

Public shed

Wharf	Name	Area [㎡]	Building structure	Adjacent berth name	Remarks
Shikama Wharf	West No.3 Shed	2,092	Steel frame single story	Senba River No.7 Berth	-
	West No.4 Shed	990	RC single story	Senba River No.6 Berth	-
	West No.5 Shed	973	RC single story	Senba River No.4 Berth	-
	Passenger Ship Shed	3,802	Steel frame two story	Shikama No.1 Berth	Total area

Cargo-handling machines

Wharf	Name	Capacity	Available at the following berths
Shikama Wharf	No.7 Crane	15 tons	Shikama No.7/8/9 Berths
Nakashima Wharf	Multipurpose Crane	43 tons	Nakashima No.3/4 Berths

4Kibi, Hirohata

Open Kibi, Hirohata data (PDF)

Channels

Channel name	Water depth [m]	Length [m]	Width [m]	Remarks
Hirohata Channel	-17.0	3,600	350	Act on Port Regulations applied

*The water depth is planned value. Check the actual water depth with charts, etc.

Mooring Facilities (Foreign Trade Public)

Area	Name	Water depth [m]	Length [m]	Target ship [D/W]	Berths
Hirohata	Hirohata No.3 Berth	-14	280	55,000	1

Anchorage areas

Area name	Anchorage area [ha]	Breakdown by water depth [ha]
		Lower than -4.0m	Not lower than -4.0m but lower than -7.5m	Not lower than -7.5m but lower than -9.0m	-9.0m or higher
Hirohata Area Ship Anchorage Area	111.2	-	-	-	111.2

Cargo-handling machines

Wharf	Name	Capacity	Available at the following Berths
Hirohata Wharf	Gantry Crane	40 tons	Hirohata No.3 Berth

5Aboshi, Aboshi offshore

Open Aboshi, Aboshi offshore data (PDF)

Anchorage areas

Area name	Anchorage area [ha]	Breakdown by water depth [ha]
		Lower than -4.0m	Not lower than -4.0m but lower than -7.5m	Not lower than -7.5m but lower than -9.0m	-9.0m or higher
Aboshi Area Ship Anchorage Area	72.5	-	28.8	43.7	-
Aboshi Area Inner Harbor Anchorage Area	7.0	7.0	-	-	-

6Hamada, Kariya

Open Hamada, Kariya data (PDF)

Mooring Facilities (Foreign Trade Public)

Area	Name	Water depth [m]	Length [m]	Target ship [D/W]	Berths
Hamada	Western Berth North	-7.5	130	5,000	1
	Westren Berth South	-10.0	185	12,000	1

Anchorage areas

Area name	Anchorage area [ha]	Breakdown by water depth [ha]
		Lower than -4.0m	Not lower than -4.0m but lower than -7.5m	Not lower than -7.5m but lower than -9.0m	-9.0m or higher
Hamada Area Ship Anchorage Area	30.6	-	-	15.8	14.8
Kariya Small-Boat Basin	0.1	0.1	-	-	-
