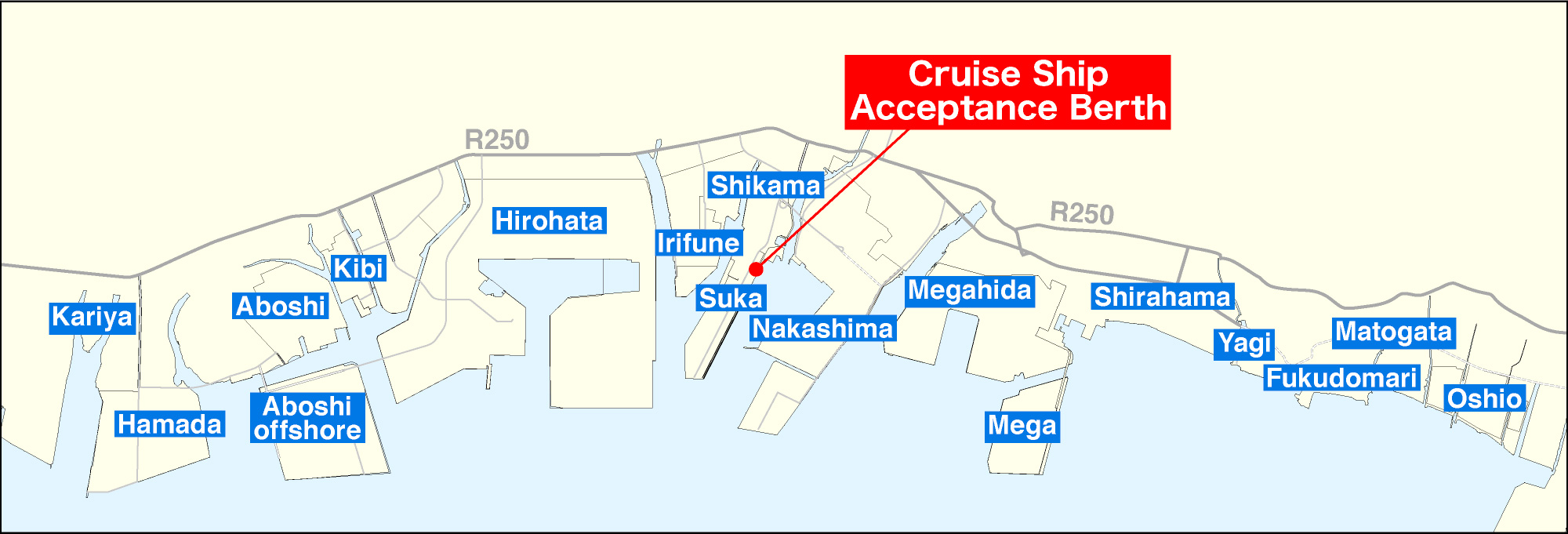

Cruise Ship Acceptance Map

Cruise Ship Acceptance Map

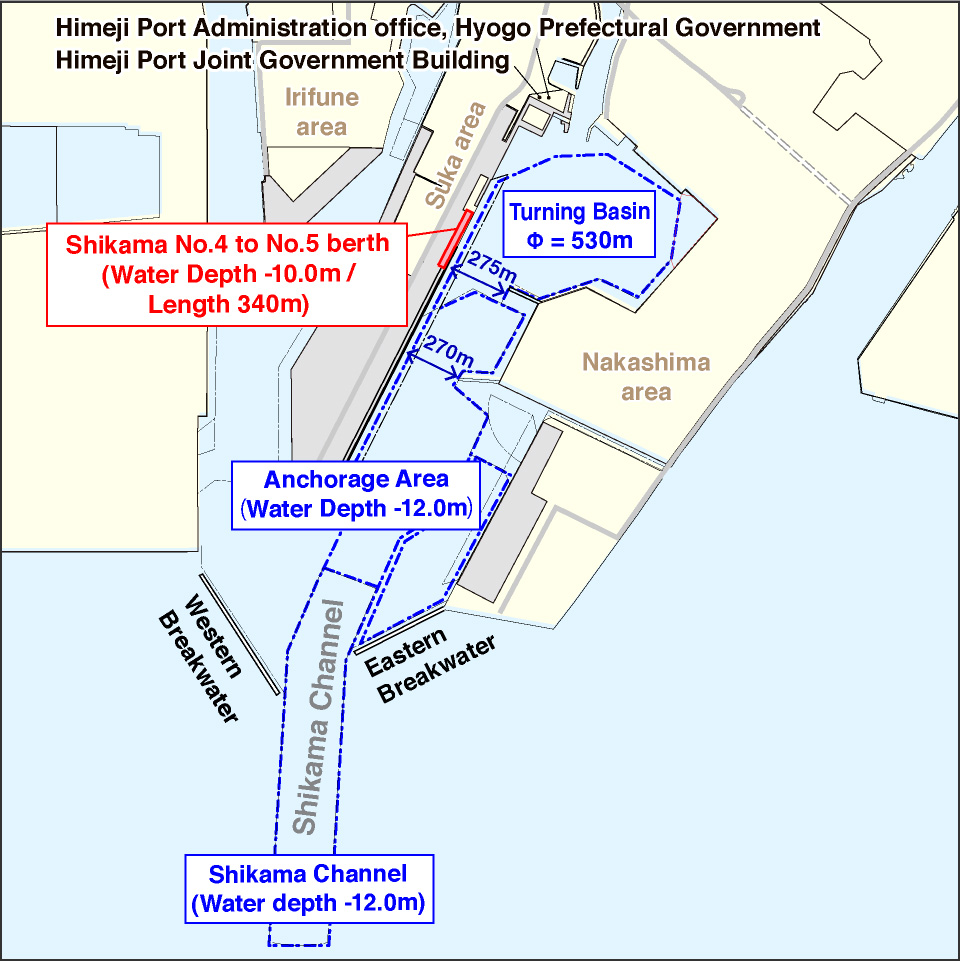

Pier Information for Large Cruise Ships

Pier information for large cruise ships Open Pier information for large cruise ships data(PDF)
Mooring berth
Berth Length[m] Water depth[m] Bollard Fender bar
Strength Interval[m] Size[mm] Interval[m]
Shikama No.4 berth 170.0 -10.0 700kN 25.0 V-600H×2400L 15.0
Shikama No.5 berth 170.0 -10.0 700kN 28.5 V-600H×2400L〜2500L 15.0

*Sikama No.4 to No.5 berth are connected. (Total length 340m)
*When a long length vessel moors, bollards of Sikama No.3 berth are used. No.3 berth connects No.4 berth.

Coverage water area
Segment Width[m] Water depth[m] Area[ha]
Channel(-12) 250.0 -12.0 -
Anchorage Area(-12)* 270.0 -12.0 82.8
Anchorage Area(-10)* 275.0 -10.0 66.9

*Anchorage Area(-12),54.0+28.8=82.8ha.

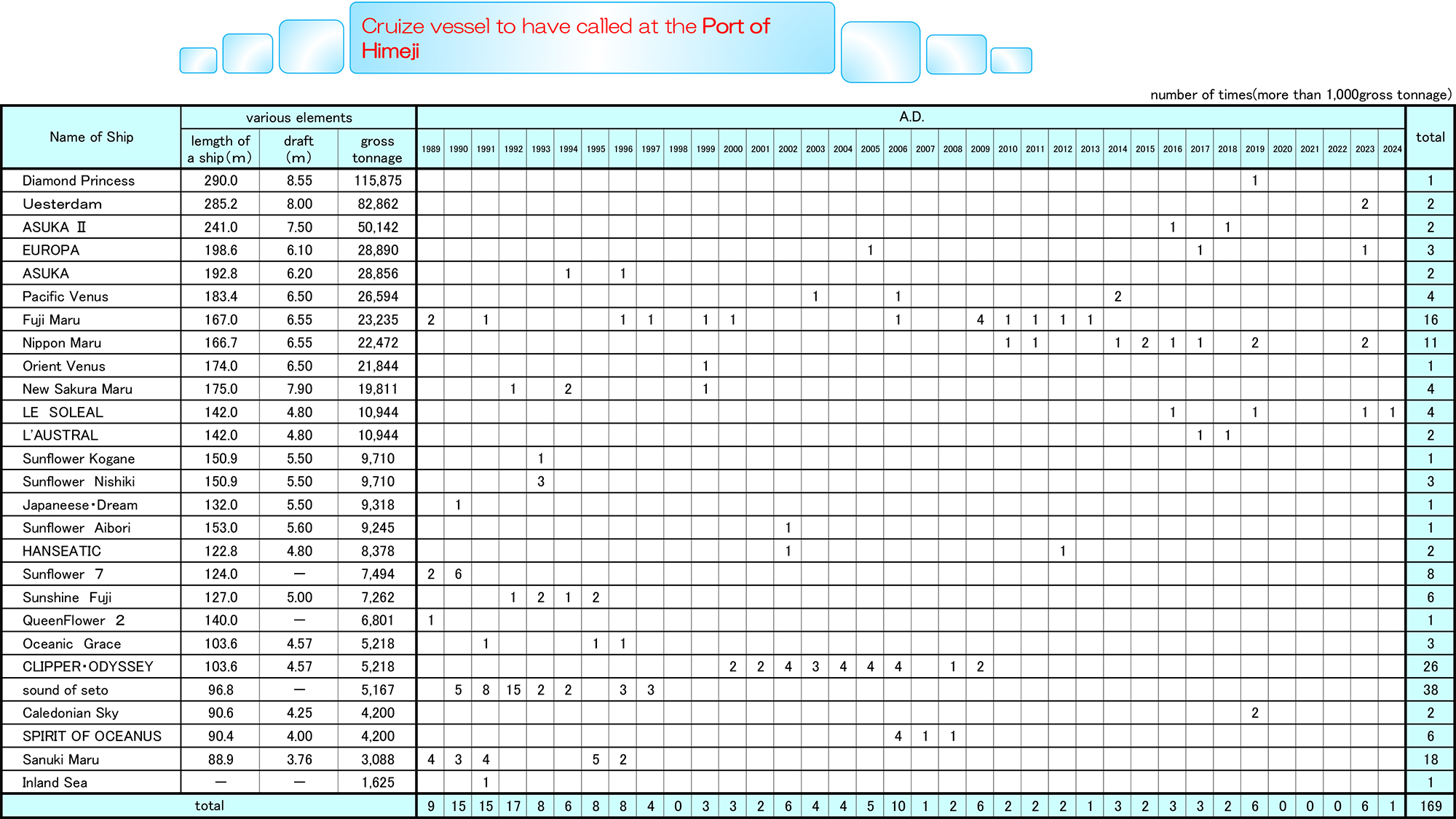

Cruise Ship to Have Called at the Port of Himeji

Cruise Ship to Have Called at the Port of Himeji Open Cruise Ship to Have Called
at the Port of Himeji data (PDF)
